Private File Storage with S3

Apart from hosting the React Frontend application statically, the Rookwork project requires a secure, private cloud storage solution to store project-related document attachments, user-uploaded files, and profile avatars.

We use Amazon S3 combined with Presigned URLs to ensure all user files are stored securely.

Step 1: Create a Private Amazon S3 Bucket

  1. Navigate to the Amazon S3 service on the AWS Management Console.
  2. Click Create bucket.
  3. Configure settings:

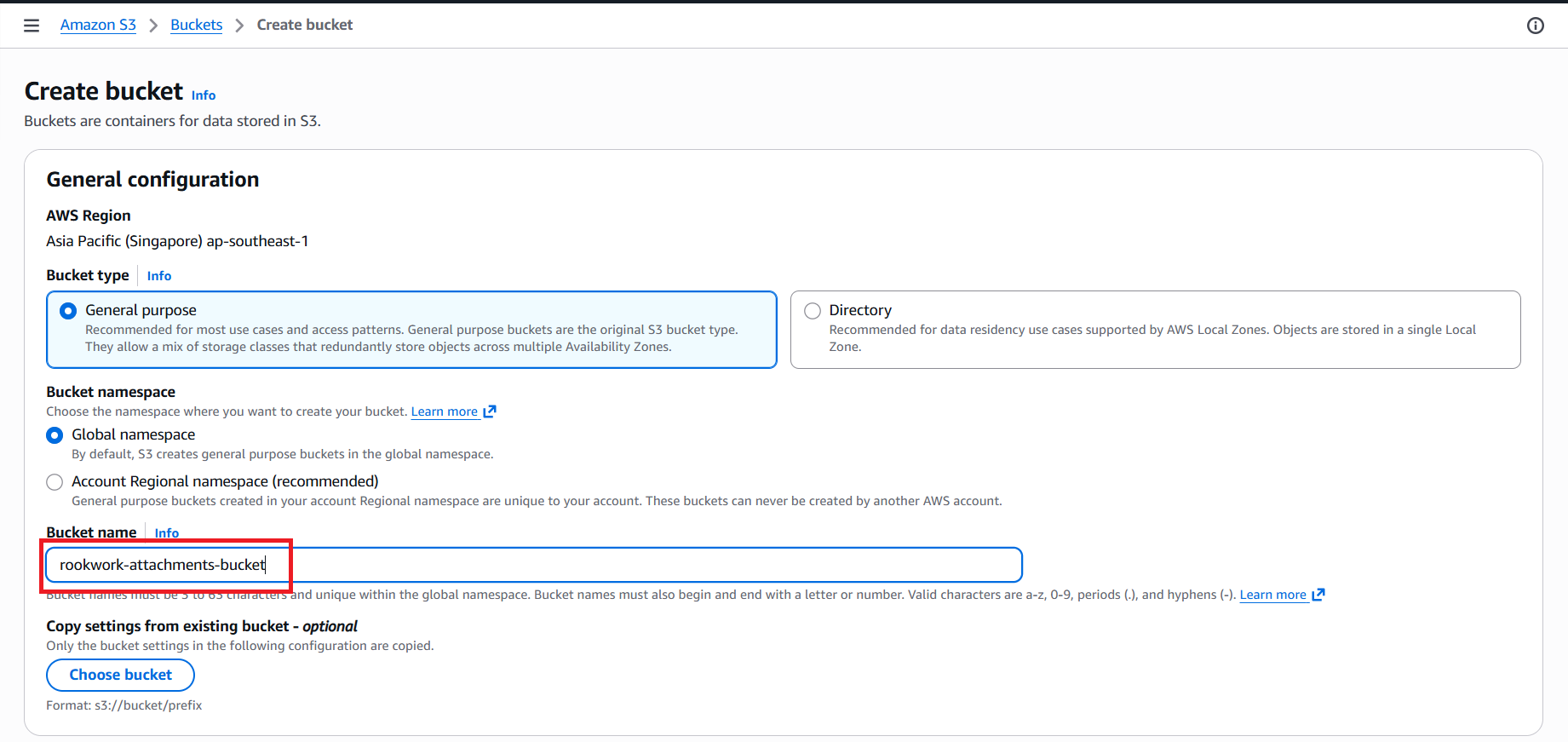

    • Bucket name: Enter a globally unique name (e.g., rookwork-attachments-bucket).
    • AWS Region: Select the same region where your EC2 and RDS instances reside (e.g., ap-southeast-1 Singapore).

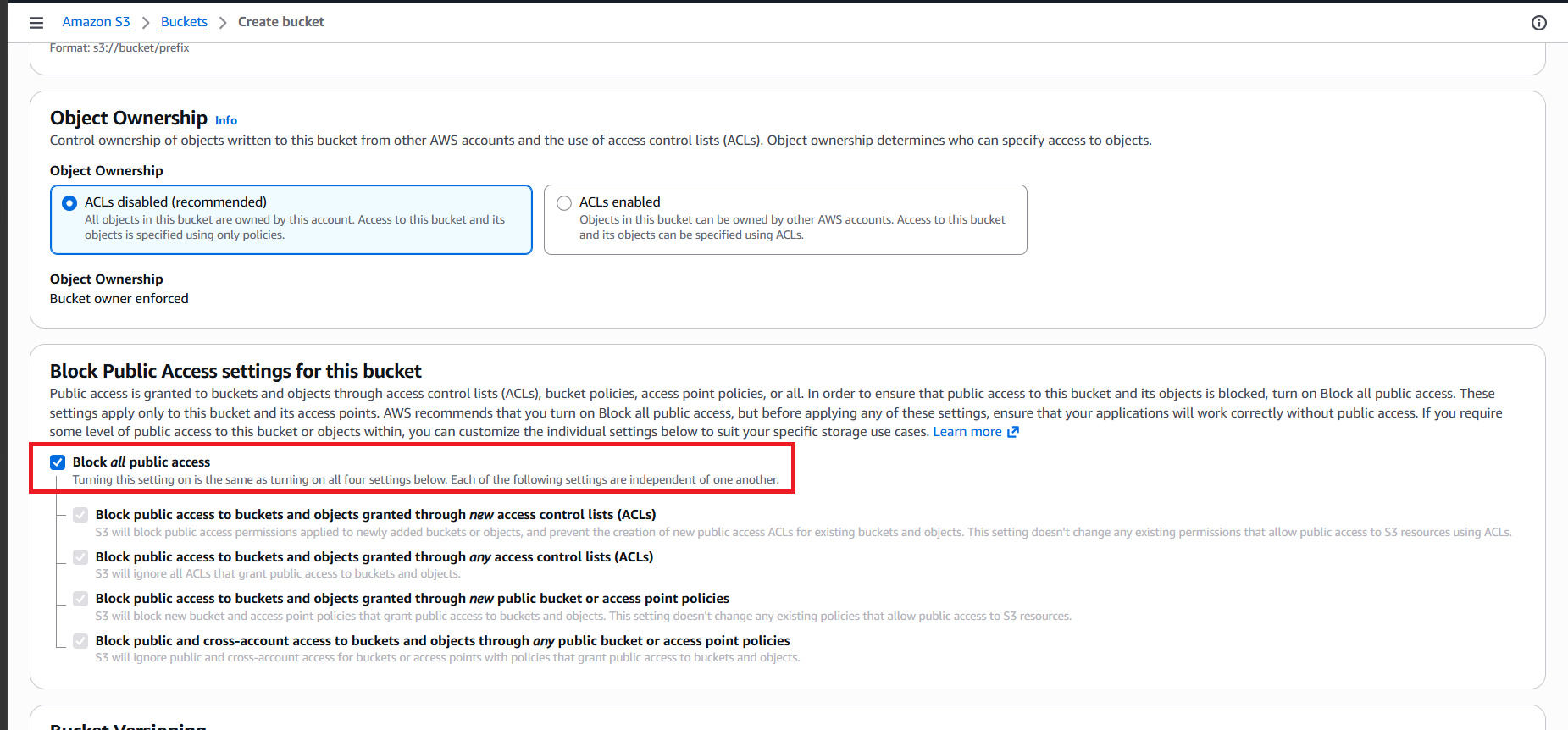

    • Block Public Access settings: Check Block all public access (It is mandatory to block all public access to prevent project attachments and member avatars from being leaked to the public internet). Configure Private S3 Bucket
  4. Keep the remaining settings at default and click Create bucket. S3 Storage Bucket created successfully

Step 2: Configure Spring Boot Backend

In the Spring Boot backend source code (rookwork-backend-sb), load Spring Cloud AWS S3 configurations using system environment variables (inside the .env file or set as environment variables on the production EC2 server):

# AWS S3 Production Configuration
spring.cloud.aws.s3.enabled=true
spring.cloud.aws.region.static=${AWS_REGION:ap-southeast-1}
spring.cloud.aws.credentials.access-key=${AWS_S3_ACCESS_KEY_ID}
spring.cloud.aws.credentials.secret-key=${AWS_S3_SECRET_ACCESS_KEY}
aws.s3.bucket-name=${AWS_S3_BUCKET:rookwork-attachments-bucket}

Step 3: Implement S3 Service in Java using AWS SDK v2

In the Rookwork backend application (rookwork-backend-sb), we utilize the S3Template class (from the Spring Cloud AWS library) to upload and delete files, alongside the S3Presigner class to generate temporary pre-signed URLs (valid for 15 minutes) for secure access and download of private objects:

package com.example.rookwork_backend_sb.services;

import io.awspring.cloud.s3.S3Template;
import lombok.RequiredArgsConstructor;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Service;
import org.springframework.web.multipart.MultipartFile;
import software.amazon.awssdk.services.s3.model.GetObjectRequest;
import software.amazon.awssdk.services.s3.presigner.S3Presigner;
import software.amazon.awssdk.services.s3.presigner.model.GetObjectPresignRequest;
import software.amazon.awssdk.services.s3.presigner.model.PresignedGetObjectRequest;

import java.io.IOException;
import java.io.InputStream;
import java.time.Duration;
import java.util.UUID;

@Service
@RequiredArgsConstructor
public class S3Service {

    private final S3Template s3Template;
    private final S3Presigner s3Presigner;

    @Value("${aws.s3.bucket-name}")
    private String bucketName;

    /**
     * Uploads a file to AWS S3 and returns the generated stored name.
     */
    public String uploadFile(MultipartFile file, UUID projectId, UUID issueId) throws IOException {
        String fileExtension = getFileExtension(file.getOriginalFilename());

        // Generate random unique name
        String fileUuid = UUID.randomUUID().toString();
        // Construct directory structure key: projects/{projectId}/issues/{issueId}/{uuid}{ext}
        String storedName = String.format("projects/%s/issues/%s/%s%s",
                projectId,
                issueId,
                fileUuid,
                fileExtension);

        try (InputStream inputStream = file.getInputStream()) {
            s3Template.upload(bucketName, storedName, inputStream);
        }
        return storedName;
    }

    /**
     * Deletes a file from AWS S3.
     */
    public void deleteFile(String storedName) {
        s3Template.deleteObject(bucketName, storedName);
    }

    /**
     * Generates a temporary Presigned URL for viewing/downloading files.
     * Valid for 15 minutes.
     */
    public String generatePresignedUrl(String storedName) {
        if (storedName == null || storedName.isEmpty()) {
            return null;
        }

        GetObjectRequest getObjectRequest = GetObjectRequest.builder()
                .bucket(bucketName)
                .key(storedName)
                .build();

        GetObjectPresignRequest getObjectPresignRequest = GetObjectPresignRequest.builder()
                .signatureDuration(Duration.ofMinutes(15))
                .getObjectRequest(getObjectRequest)
                .build();

        PresignedGetObjectRequest presignedGetObjectRequest = s3Presigner.presignGetObject(getObjectPresignRequest);
        return presignedGetObjectRequest.url().toString();
    }

    /**
     * Uploads a user avatar to S3 under the "avatar" directory.
     */
    public String uploadAvatar(MultipartFile file, UUID userId) throws IOException {
        String fileExtension = getFileExtension(file.getOriginalFilename());

        // Key format: avatar/{userId}/{fileUuid}{ext}
        String fileUuid = UUID.randomUUID().toString();
        String storedName = String.format("avatar/%s/%s%s", userId.toString(), fileUuid, fileExtension);

        try (InputStream inputStream = file.getInputStream()) {
            s3Template.upload(bucketName, storedName, inputStream);
        }
        return storedName;
    }

    /**
     * Helper to get presigned URL for avatar if it is stored on S3.
     * If not stored on S3 (e.g. Google URL or null), returns the original value.
     */
    public String getAvatarUrl(String picture) {
        if (picture != null && picture.startsWith("avatar/")) {
            return generatePresignedUrl(picture);
        }
        return picture;
    }

    private String getFileExtension(String filename) {
        if (filename != null && filename.contains(".")) {
            return filename.substring(filename.lastIndexOf("."));
        }
        return "";
    }
}

After configuring private file storage, proceed to 5.7.5. Email Integration with Amazon SES to set up the email notifications and OTP service.
