Initialize VPC, NAT Gateway and Security Groups

In this step, we will set up the entire network infrastructure for the Rookwork project, consisting of 3 main parts:

1. Create the VPC using the “VPC and more” feature
2. Create the NAT Gateway for the Private Subnet to connect to the internet
3. Create Security Groups in a layered model for the ALB and Backend

Part 1 – Initialize the VPC

Step 1: Access the VPC Service

• Log in to the AWS Management Console, making sure you are in the Asia Pacific (Singapore) ap-southeast-1 region.
• Search for VPC in the top search bar → select Your VPCs → click Create VPC.

Step 2: Configure the VPC with “VPC and more”

• For Resources to create, select VPC and more (not “VPC only”).

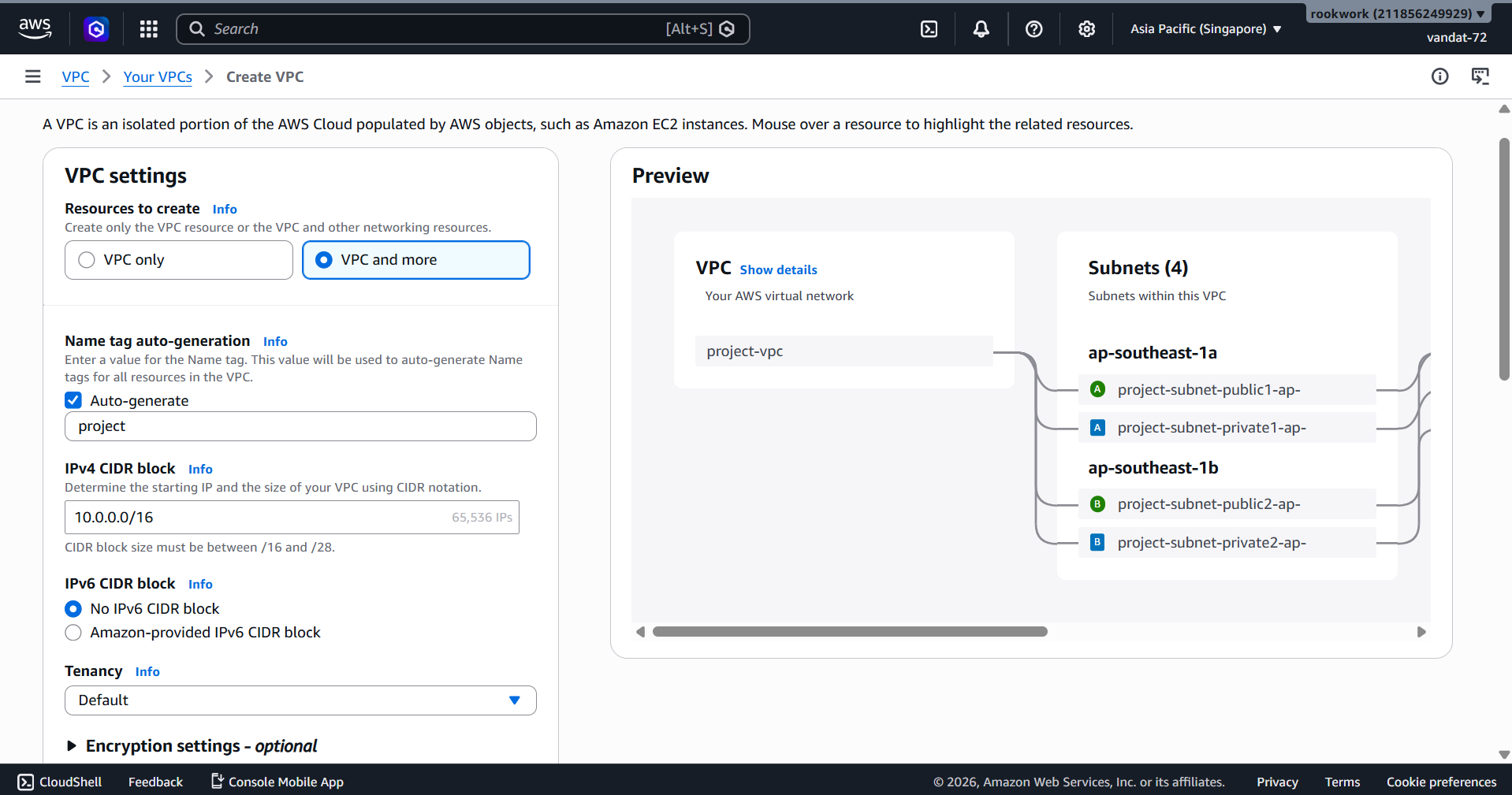

• Enter the configuration parameters according to the table below:

The right side of the screen will display a Preview of the VPC diagram containing 4 Subnets across 2 AZs.

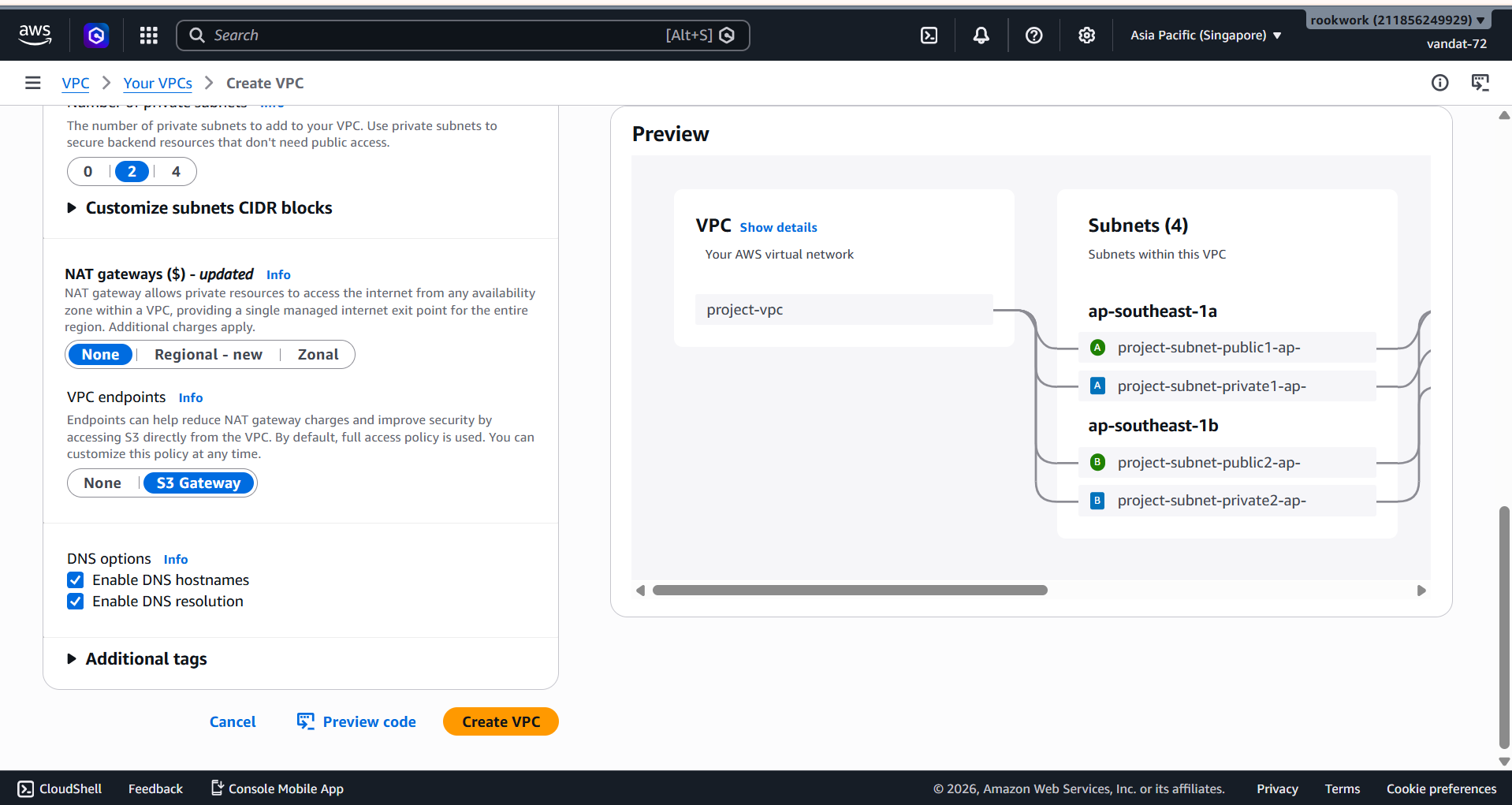

• NAT gateways: Select None (we will create this manually in Part 2).
• VPC endpoints: Select S3 Gateway to create a VPC Endpoint for connecting to S3 internally without going through the internet.
• Keep DNS options at default: Enable DNS hostnames and Enable DNS resolution.

Click Create VPC to deploy.

Part 1 Results

The system automatically generates:

• 1 VPC: rookwork-vpc — CIDR 10.0.0.0/16
• 4 Subnets: 2 Public + 2 Private across 2 AZs
• 1 Internet Gateway: rookwork-igw
• 3 Route Tables: 1 Public + 2 Private
• 1 VPC Endpoint: rookwork-vpce-s3 (S3 Gateway)

[!TIP] After creation, go to Your VPCs → rookwork-vpc → Resource Map tab to verify that the entire network routing is configured correctly.

Part 2 – Create the NAT Gateway

The NAT Gateway allows resources in the Private Subnet (EC2 Backend) to download packages and updates from the internet without exposing their IP addresses.

Step 1: Create the NAT Gateway

• On the left-hand menu under VPC, select NAT Gateways → Create NAT gateway.

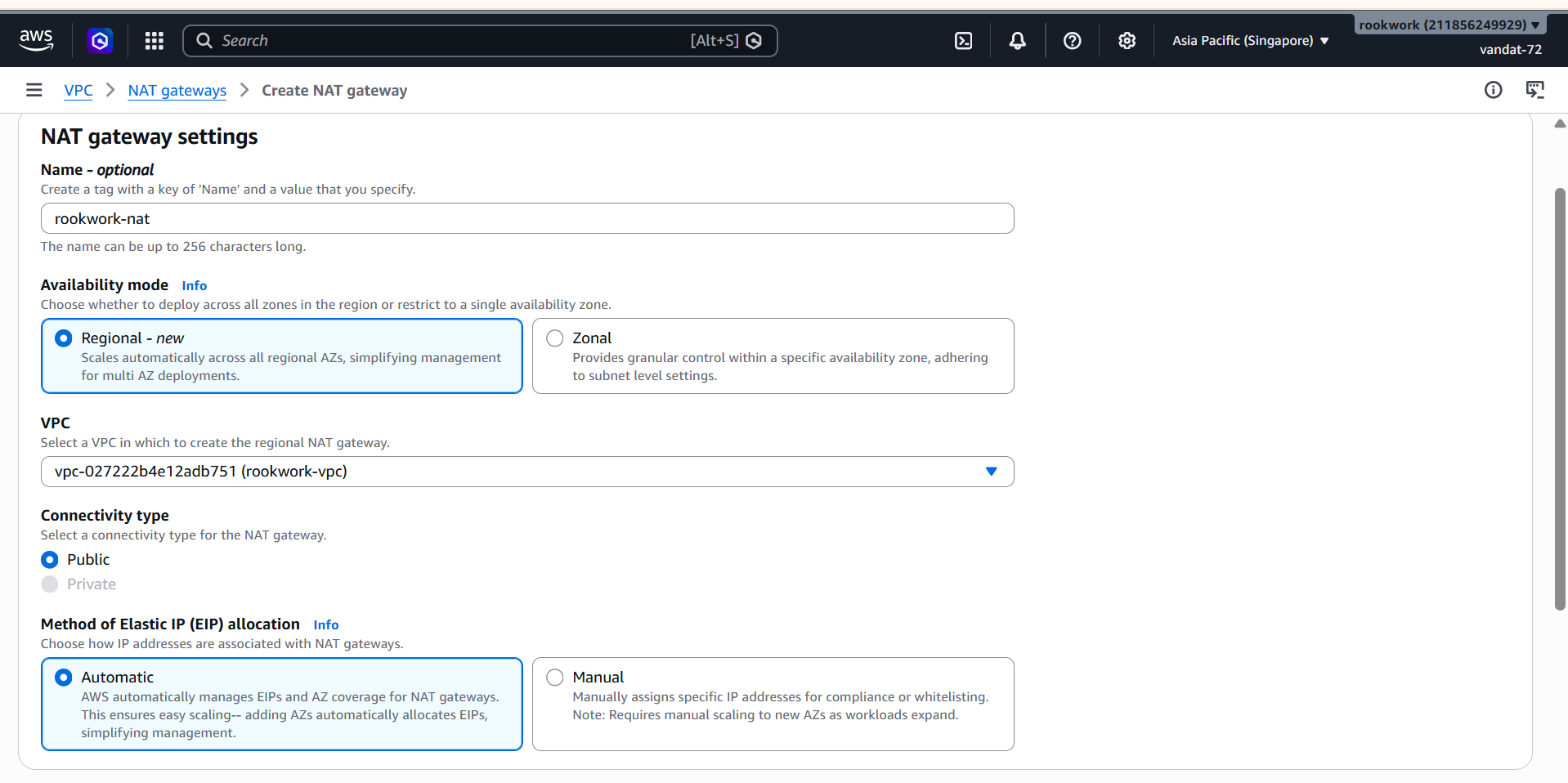

• Enter the configuration parameters:

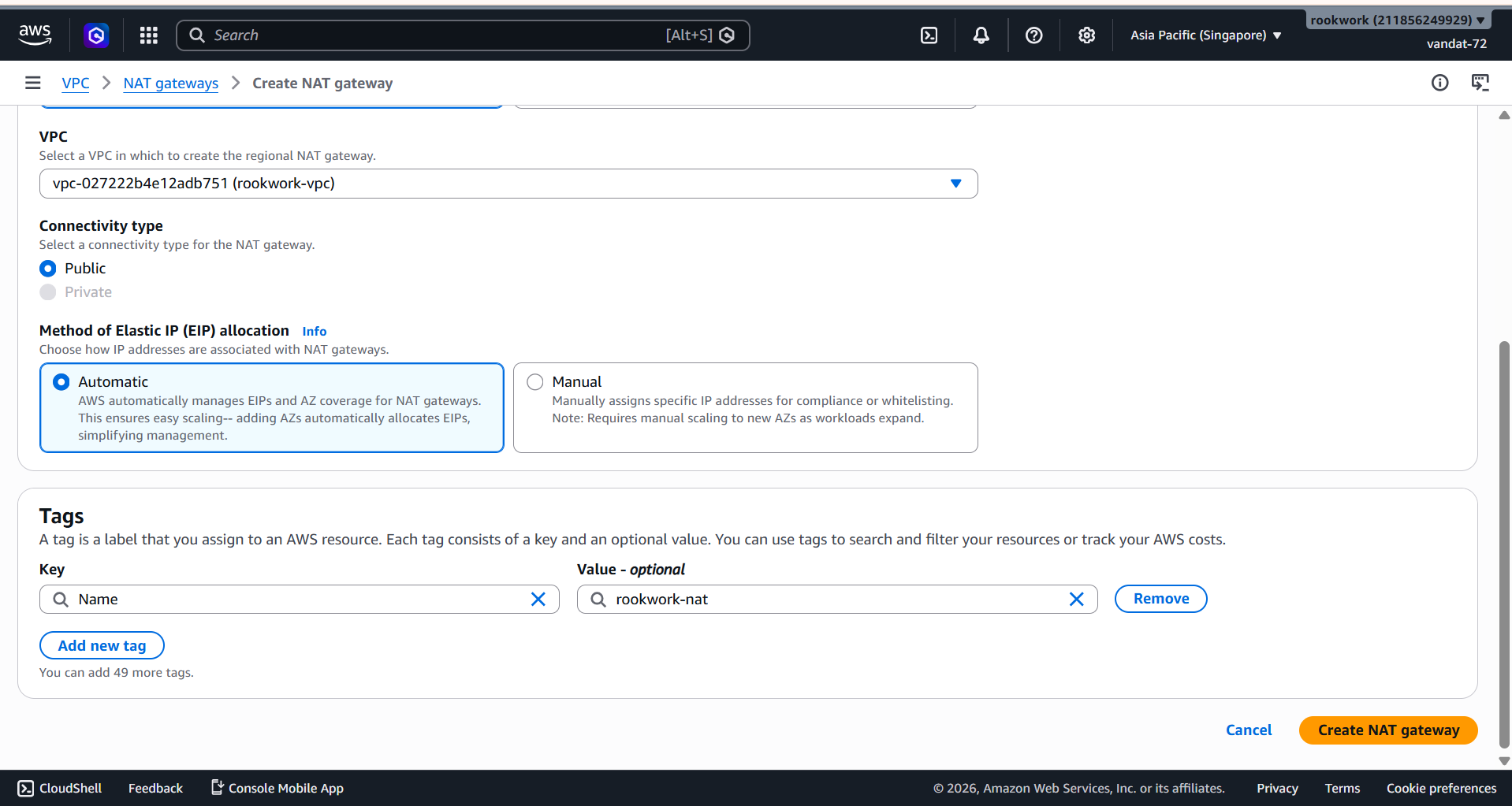

Step 2: Confirm Tags and Create

• Ensure the tag Name = rookwork-nat is filled in correctly.
• Click Create NAT gateway.

Step 3: Check Status

• Make sure the State column shows ** Available** (green).
• If it is still Pending, wait 1–2 minutes and refresh the page.

[!NOTE] NAT Gateways are billed per hour and per GB of data processed. Remember to delete this resource after completing the lab in step 5.6 – Resource Cleanup.

Part 3 – Set Up Security Groups

Security Groups act as virtual firewalls at the instance level. We create 3 Security Groups using a layered security model:

• rookwork-alb-sg: Opens HTTP/HTTPS ports from the internet → receives user requests.
• backend-sg: Only accepts traffic from rookwork-alb-sg → backend has no direct internet exposure.
• rds-ec2-1: Only accepts PostgreSQL connections (port 5432) from ec2-rds-1 → RDS is completely isolated from the internet.

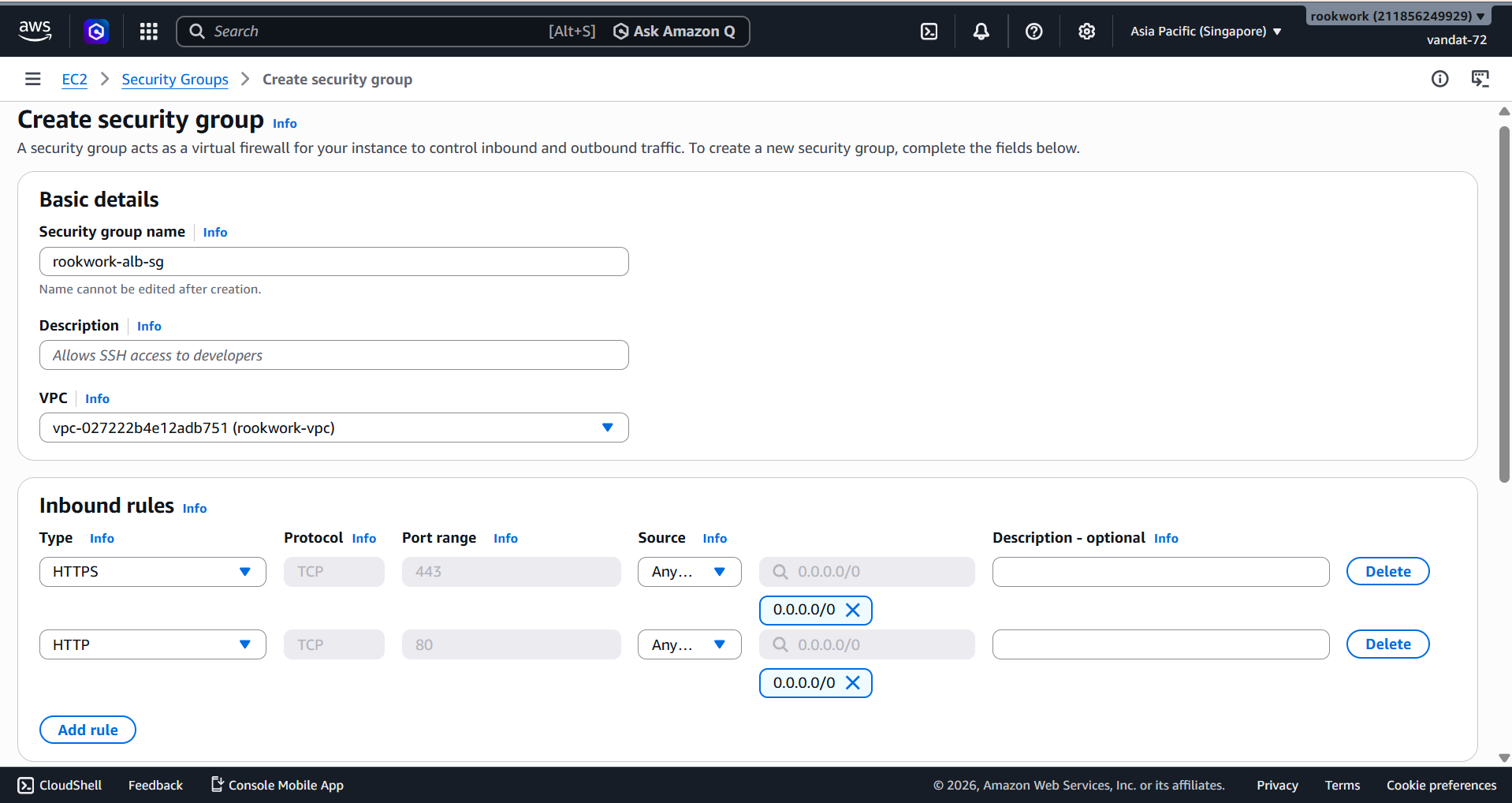

Step 1: Create Security Group for ALB (rookwork-alb-sg)

• VPC Left-hand menu → Security Groups → Create security group.

Inbound rules:

Outbound rules: Keep default (All traffic). Click Create security group.

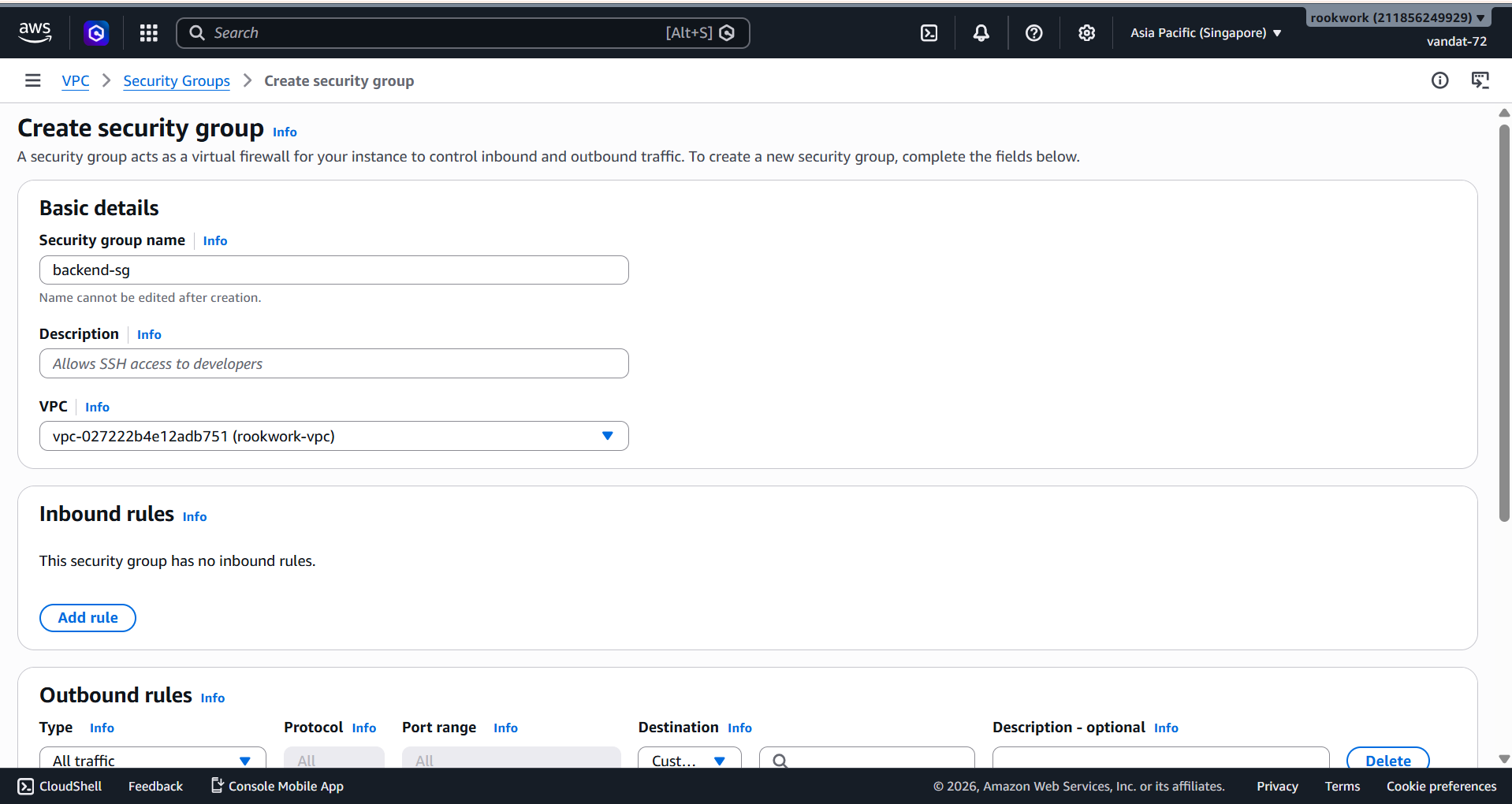

Step 2: Create Security Group for Backend (backend-sg)

• Click Create security group again.

Inbound rules: Leave empty (to be added in Step 3).
Outbound rules: Keep default. Click Create security group.

Step 3: Add Inbound Rules to backend-sg

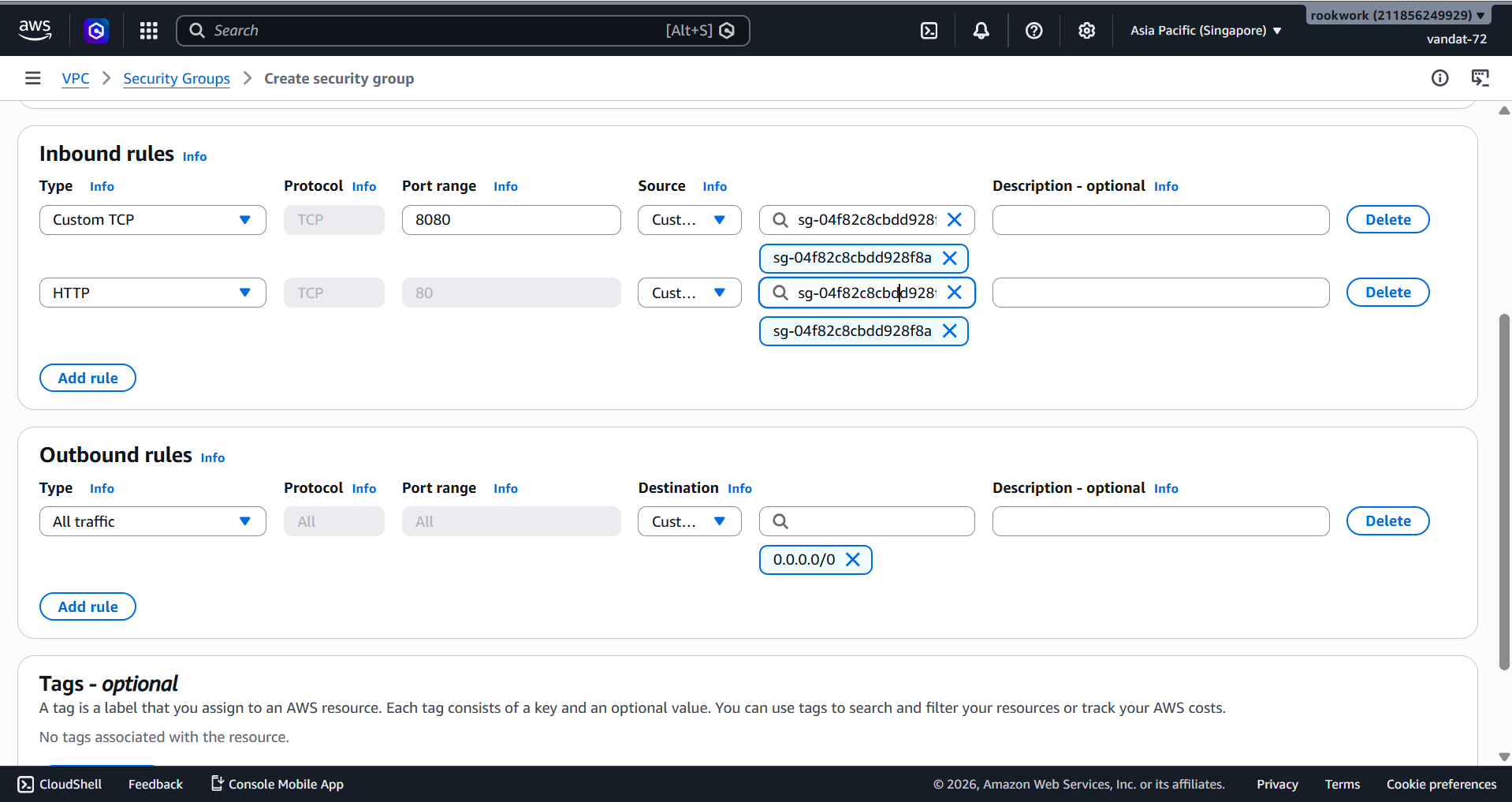

Once rookwork-alb-sg has been created and has a Security Group ID, return to edit backend-sg → Inbound rules → Edit inbound rules:

[!IMPORTANT] For the Source, select Custom and enter the name or ID of rookwork-alb-sg instead of entering a CIDR IP. This ensures the Backend only accepts traffic from the Load Balancer, never directly from the internet.

Click Save rules.

Step 4: Create Security Group for RDS (rds-ec2-1)

To protect the database, we create a dedicated Security Group that only allows connections from the EC2 Backend on the PostgreSQL port.

• Click Create security group once more.

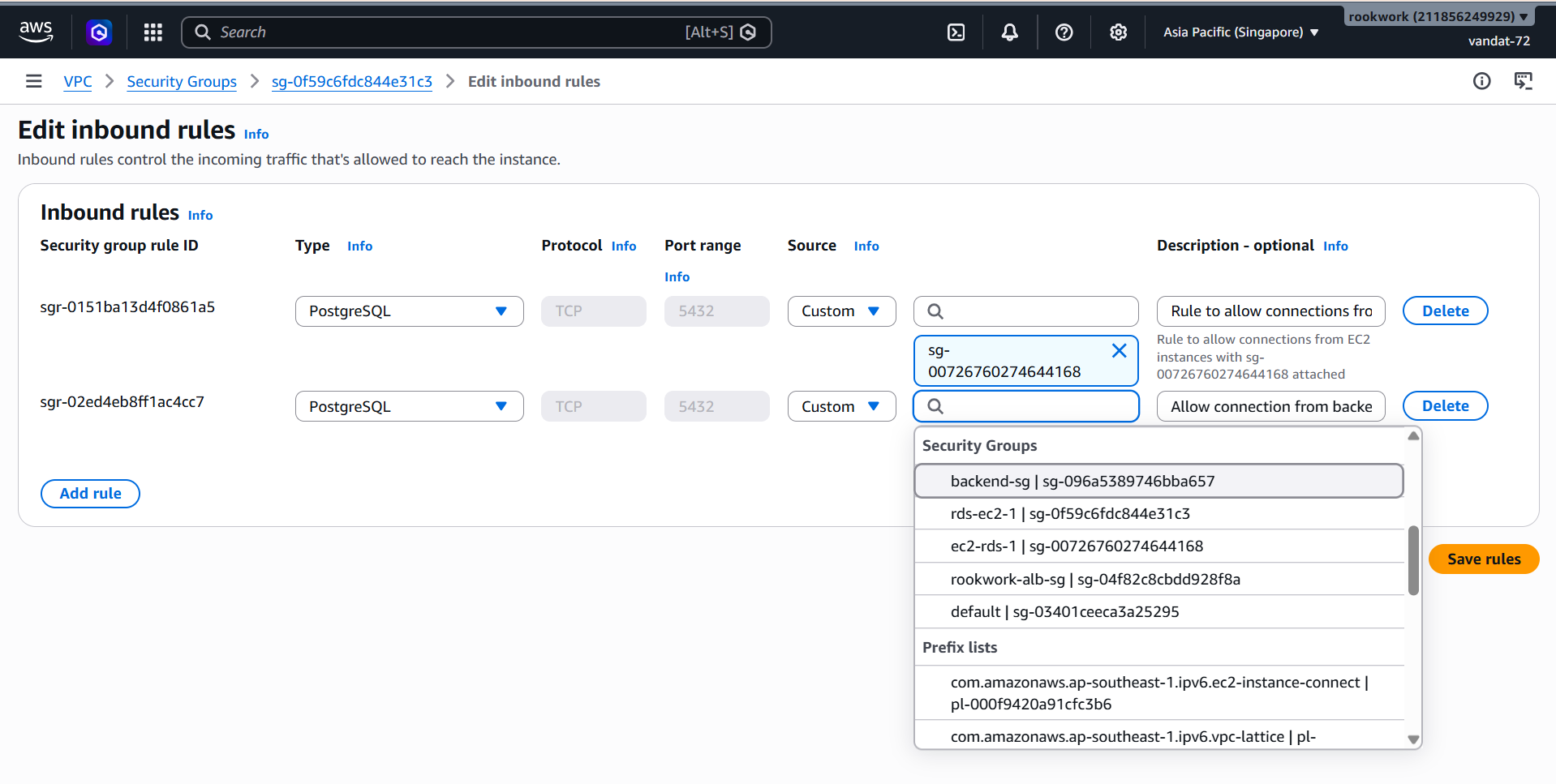

Inbound rules — Add 2 rules:

[!IMPORTANT] For the Source, select Custom and type the Security Group ID of ec2-rds-1 or backend-sg. This ensures the RDS only accepts database connections from the EC2 Backend and is never exposed directly to the internet.

Click Save rules.

Summary

After completing all 3 parts, the Rookwork network infrastructure is ready:

[!TIP] Defense-in-Depth security model: ALB → Backend → RDS. Each layer only accepts incoming traffic from the preceding layer, ensuring the database is completely isolated from the internet.
